LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

PIVOT 1.7_7W

Pivot 1.7 code: CP17020FKA-1/projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap)

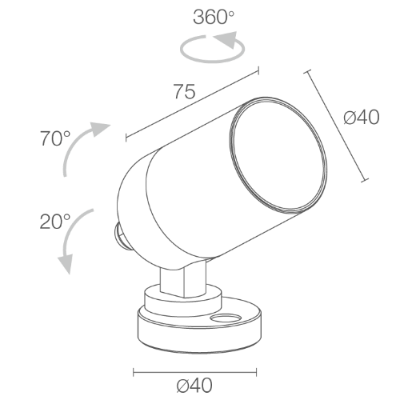

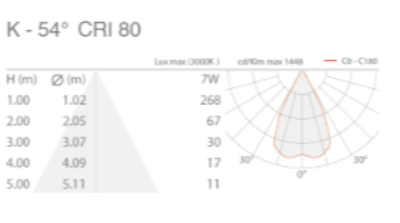

Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 657 lm (3000K, 7W, CRI 80)/Delivered lumen output: 463 lm (3000K, 34°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: 54°: optical system consisting of a deep-set, high-efficiency TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø40x75 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

463LM

Finishing

GREY

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

DELTALIGHT

SPOTLIGHT

INDOOR LIGHTING

Minimalism, functionality and versatility are the key terms to describe this extensive collection. The Spy was designed to meet multiple lighting requirements, an ideal solution for accent lighting in residential, hospitality or commercial spaces. The range features low to high lumen packages, narrow to wide beam options, standard or specific LED colours, recessed to surface mounted and track applications, different colour finishes and combinations, and can be equipped with multiple light refining accessories.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a medium wide flood light light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 849 lm, with a 141.5 lm/W nominal luminous efficacy.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three narrow medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted, aluminumvaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
