LINEALIGHT

Light lines bendable in one direction (top view or side view) with a perfectly homogeneous and dot-free light surface for outdoor architectural lighting. Detailed specification text in download section. VENUS is a polyurethane encapsulated luminaire. Restistance and chemical stability against urban gases. With an efficiency up to 95 lm/W, VENUS stands out as one of the most efficient light line available to date. The various lumen output and a large panel of available CCTs turns VENUS into a modular lighting design toolkit. Fixture build to length (not field cutable): L = (N x 62.5 mm) + 26 mm; N = 3 ... 80; L = 213.5 mm: Nmax = 80; L = 5,026 mm. IP67.

Decorative suspended luminaire in aluminium; surface black powder coated; height adjustable U-profile pendant rod suspension (black) 1500mm, feed 2000mm (1500mm in U-profile), incl. ceiling mounting ring + hook (black) for multiple positioning of the luminaire in the room; spotlight head 265° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 44° beam; degree of protection IP20; PC2 220-240V; canopy for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 9-25 mm; special mounting tool for easy installation of the trimless housing available as an accessory; incl. converter, non dimmable; external converter for ceiling insertion; light source not replaceable; control gear replaceable by an authorized professional.

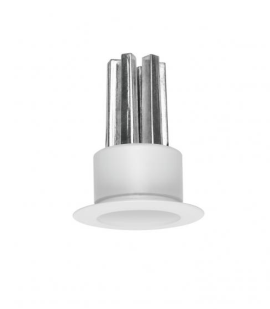

Round recessed spotlight in die-cast aluminium; surface white powder coated; with trim; suitable for ceiling thickness of 2-25 mm; installation without tools using snap spring closure; passive cooling of the LEDs through improved heat sink geometry

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
