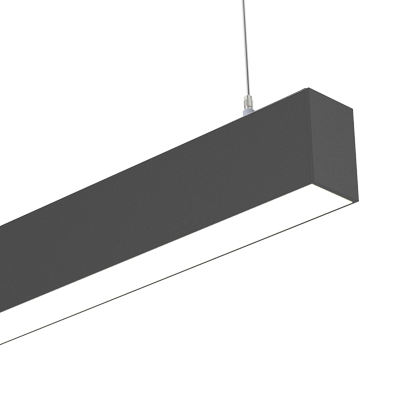

Linear XTR Direct View is a direct view LED linear fixture designed for maximum run length. Using custom internal circuitry and advanced power systems, it allows for interconnection of up to 700’ of product, and up to 1400’ on a single driver when controlled in group mode. Available in multiple color temperatures of white or color-changing, it is perfect for applications where long-distance runs are desired.

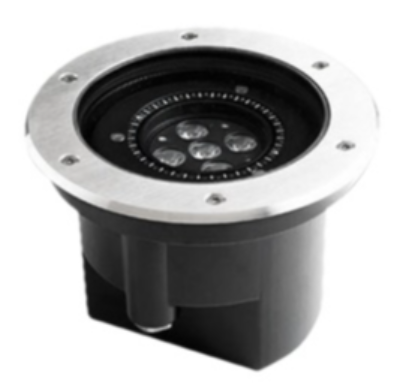

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

Single emission projectors for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
