Preview Real Lighting Products in Blox 3D Simulator Using IES Files
Products
RCL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
DAT-DRX5.0375

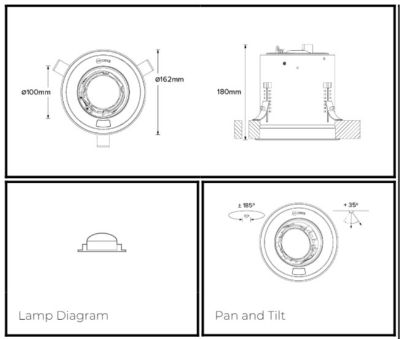

DRX5 3000K LED (17W for light source) standard trim recessed luminaire with 34° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 100-277V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 185° movement through the pan axis and +35 through the tilt axis, at a resolution of less than 1° in either axis. Movement and dimming is controlled using RCL Control. Recording and recalling of scenes as standard.
Specification
- Power
- 17W
- Color Temperature
- 3000K
- Light Source Type
- LED

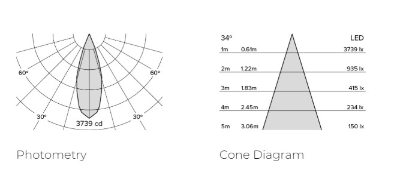

- Lumen Output
- 1570LM
- Finishing
- WHITE
- IP Rating
- IP20
- Color Rendering
- CRI 90+
- Driver
- 1-10V DRIVER
See more
