Product Detail | Bloxlimited

IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

CRYSTAL_RD12.D8

Recessed luminaire consisting of a lamp device, 9-cell emission raster and operating components. Version for high emission general lighting. LED lamps with high color rendering index. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.

Specification

Power

37.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

4449LM

Finishing

WHITE TRANSPARENT

IP Rating

IP20

Color Rendering

CRI90

Driver

DALI DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.375 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

COLORS

LED NEON TUBE

OUTDOOR LIGHTING

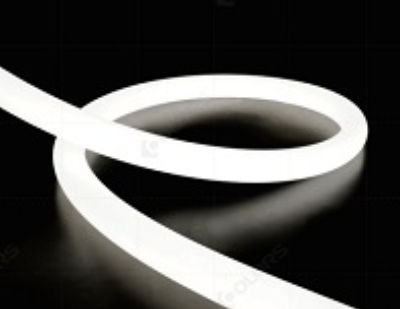

Silicone Neon Strip adopts bi-color/ tri-color co-extrusion process, featured baby-skin feel in touch and uniform & natural light in function. It shows great resistance to saline solutions, acid & alkali, corrosive gases, fire and UV. The series include Outline Neon for delicate micro-scene outlining, Magic Neon for innovative styling and Architecture Neon for facade and under-water lighting. The ingress protection degree is IP68,IK08.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

UNIOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Available in 4 sizes, an extensive range of accessories and 15,000+ customisations, the ION R Downlight is an outstanding contender for all lighting needs. With 2 models, Standard and Wallwasher, the ION R Downlight can be specified for both horizontal and vertical lighting needs.
