Products

IGUZZINI

RECESSED DOWNLIGHT
INDOOR LIGHTING

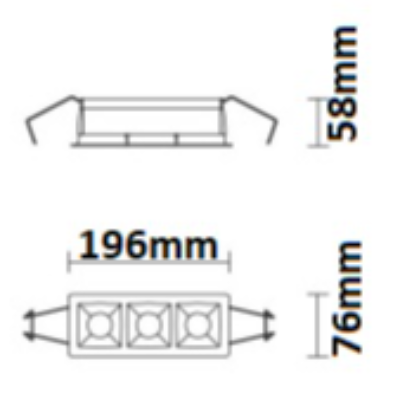

CRYSTAL_RD73.D8

Recessed luminaire consisting of a lamp device and a 3-cell emission raster - model with operating components to be ordered separately. Version for controlled luminance lighting UGR < 19 - variant for light emission in Tunable White mode. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.

Specification

Power
5.5W
Color Temperature
TW-2700-6500K
Light Source Type
LED
Lumen Output
730LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI90
Driver
ON/OFF DRIVER

See more

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING
IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

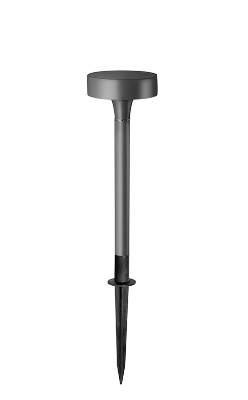

SIMES
BOLLARD
OUTDOOR LIGHTING

The wiring of the fixtures must strictly respect the specifications. Where not provided by the fixture loop in /out or through wiring will cause infiltration of humidity and if in contact with the cables this may lead to an accelerated process of oxidation.

WIRING

Luminaire supplied with 5m (4m Bollard) of cable. Isolation: CLASS II .

LINEALIGHT
UNDERWATER LIGHT
OUTDOOR LIGHTING
Single emission submerged for outdoor application. The natural white LED light source with a flood light distribution is composed of 3 powerledN LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1640 lm, with a 117.1 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

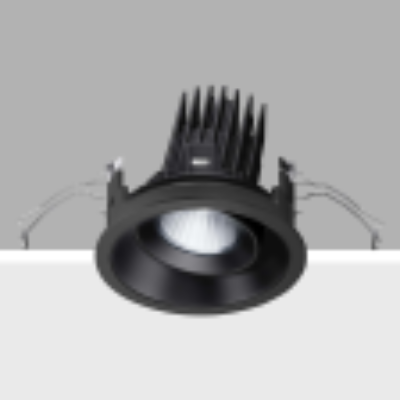

IGUZZINI
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round recessed luminaire with contact frame. Adjustable version that rotates internally by 355° and tilts by a maximum of 30°. The swivel unit rotates in a set back position in relation to the surface of the ceiling in order to guarantee precise, comfortable light diffusion and reduce direct glare significantly. The swivel unit body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - flood optic.
