Product Detail | Bloxlimited

IGUZZINI

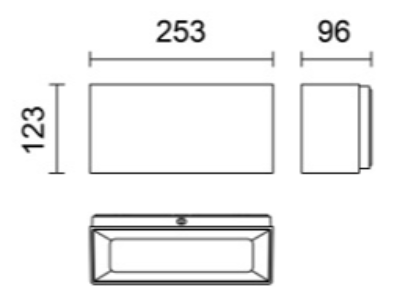

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

ALLURE_SA83+X801.01+X806.01

Wall-mounted luminaire with Warm White LED lamps - AF (Up) optic + AF (Down) optic. Consists of an optical assembly, a top glass, a bottom glass and a cover raster to be purchased separately. The optical assembly is made of an aluminium alloy, subjected to a multi-step, pre-treatment process in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer).

Specification

Power

19.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2426LM

Finishing

RUST BROWN

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

XAL

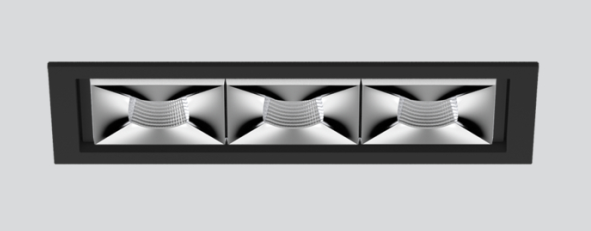

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium; surface traffic white; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min.

TRAXON

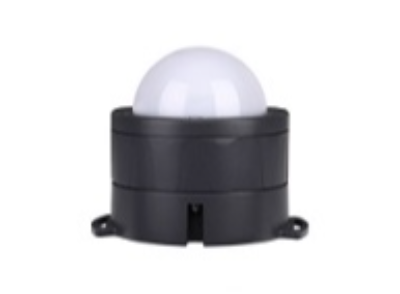

LED DOT

OUTDOOR LIGHTING

The PROPOINT Pixel White + Color Diffused Dome is an AC Line powered, high brightness, exterior luminaire. The luminaire is controllable via DMX512, and is connected using a daisy chain topology, allowing easy installation to form long run lengths. Remote Device Management (RDM) circuits are built into each luminaire which enables extensive control and monitoring of the entire installation.

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Ginko 3. 4 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of,body in anticorodal aluminium, AISI 316L stainless steel bracket made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available: 8°-38° and adjustable 8° x 66°- 36° x 70°-. IP66, IK07.
