ALTOPIANO 3.0_24°

Altopiano downlights expands the possibilities of ambient lighting in the hospitality and residential sectors: it combines a versatility of 3 different sizes and shape with a multiplicity of atmospheric light colours. Range from 2200K to 4000K, RGBW and Dim to Warm intensity/colour adjustment. Altopiano downlights offer great visual comfort, with their recessed optics and possibility of building in a honeycomb louvre and anti-glare shield with concentric rings, as well as a UGR 19 with the narrow, medium and wide optics.The body is made of thermally conductive technopolymer (with a thermal conductivity equal to that of stainless steel), giving it outstanding corrosion resistance. IP66.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

COB LED

Lumen Output

1685LM

Finishing

ANTHRACITE

IP Rating

IP66

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LED LINEAR

LED STRIP

OUTDOOR LIGHTING

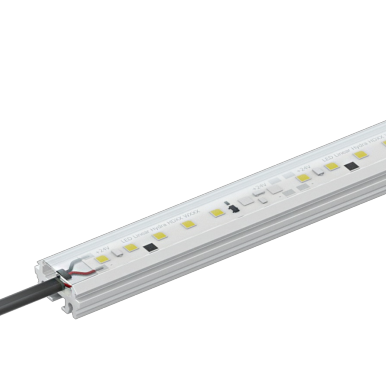

Pixelized light line produced to the desired length with IP67 connectors on both ends for fast indirect facade lighting installations. Suitable with 10 different optics. Delivered ready to use with an IP67 connector on both ends and can be easily installed via clips or mounting profiles. The aluminium profile is used for thermal management, so that even powerful LED strips with up to 25W/M. The polyurethane encapsulation ensures an IP67 rating and high resistance against salt water and UV radiation by a clear polyurethane encapsulation.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight in die-cast aluminium with tool-free installation via patented ball catch system and jet black trim, suitable for 2–25 mm ceilings. Features six wide flood elements (71° beam) with chrome micro-faceted reflector for precise symmetrical distribution. Provides 3500K light, CRI ≥90, MacAdam ≤3 SDCM, and ≥85% flux after 50,000h. Passive LED cooling, IP20, PC2, 220–240V with DALI-2 converter. Includes through-wiring box (3- or 5-pole, accessory). Non-replaceable l

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 122 x 122 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

UNILAMP

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.
