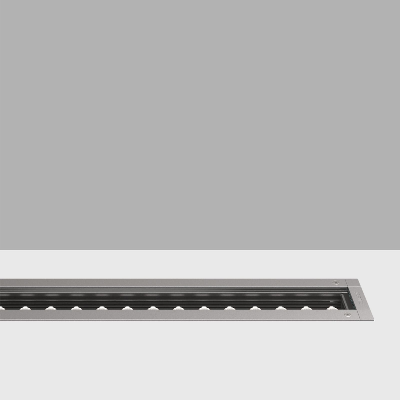

Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.450 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99972 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

The OIKO Wide recessed spotlights create a wide beam of light through an integrated secondary reflector in combination with a special diffuser. Through a Visual Optimization Baffle (VOB), the spotlight offers improved anti-glare properties and thus creates harmonious lighting moods. The individualisation in the 25+5 PROLICHT colours supports customer-oriented and holistic concepts. OIKO has a low-seal die-cast cooling system that allows for a high lumen package and prevents backlighting.

Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. Steel screws treated with an advanced anticorrosive coating. Silicone Gaskets. Extra-resistant Painting

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 35 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 44°, luminous flux: 1460 lm, wattage: 23 W, delivered lumens 63 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,013 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
