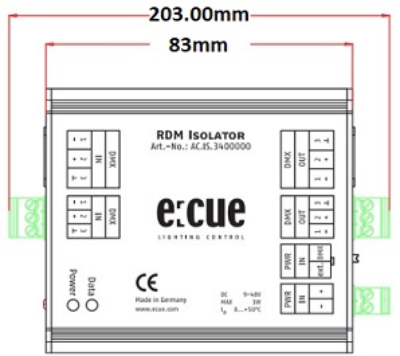

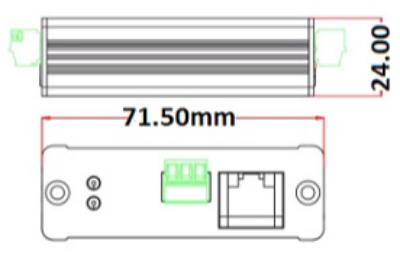

RDM ISOLATOR_AC.IS.3400000
The RDM Isolator repeats DMX and e:pix (one way) as well as RDM (bi-directional) signals over a galvanic isolation barrier. The power supply has a separate isolation barrier (“external” selected) or is aligned with the output potential (“DMX power” selected). Main features include : 1 kV isolation, USITT DMX512A and e:pix compatibility, 1 MBaud data speed (epix), RJ45 power back selectable, Separate, fully isolated power supply port, Flexible data ports (RJ45 or screw terminals), Full ANSI E1.20-2010 RDM support, Status LEDs.
Specification
- Power
- 1W
- Color Temperature
- NA
- Light Source Type
- NA
- Lumen Output
- NA
- Finishing
- ALUMINIUM
- IP Rating
- IP20
- Color Rendering
- NA
- Driver
- ON/OFF DRIVER
See more
