TRAXON

CONTROL SYSTEM

INDOOR LIGHTING

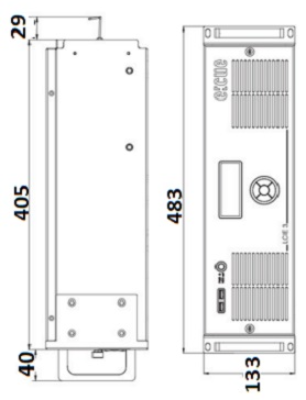

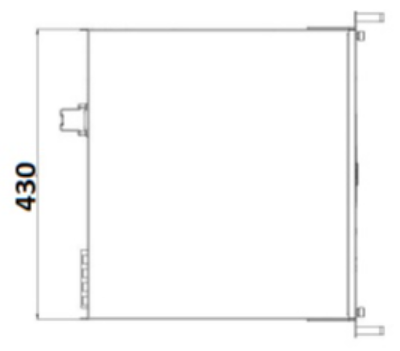

LIGHTING CONTROL ENGINE 3FX_AM368100135

The Lighting Control Engine 3 fx (LCE3FX) serves as a high performance server for controlling large lighting projects, with pre-installed e:cue SYMPHOLIGHT and Lighting Application Suite (LAS). As a central control unit, this versatile light control server orchestrates all devices and lights within a project. The LCE3FX has integrated digital dry contacts, two single-pole relay outputs and support for a wide range of Ethernet-based protocols. Additionally, Emotion FX video mixing is fully supported in the LCE3FX version. Shows and light scenes can be controlled with the internal web server via mobile devices, web browsers or via cloud applications. A built-in status display on the front shows system and software messages. The LCE3FX is the ultimate server solution for any demanding lighting project.

Specification

Power

110W

Color Temperature

Light Source Type

LED

Lumen Output

Finishing

STEEL

IP Rating

IP20

Color Rendering

Driver

ON/OFF DRIVER

LINEALIGHT

LINEAR LIGHT

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 144 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2403 lm, with a 123.2 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing. The ingress protection degree is IP66,IK10.

FLOS

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

LED luminaire for general lighting with a signature minimalist and compact design, to be installed on ceilings by means of suspension. Power source included in installation kits must be ordered separately.

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System Power 15W; measurements Ø110mm x 131mm; ceiling cutout of Ø100mm with a narrow mounting trim; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 2700K with a System luminous flux of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty.
