LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

PERISKOP NARROW_81167M08

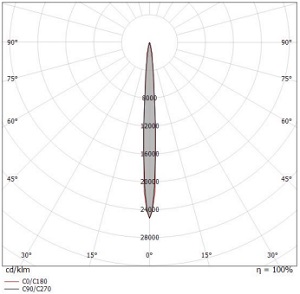

Single emission projectors for outdoor application. The super warm white LED light source with a narrow spot light distribution is composed of 3 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK10.

Specification

Power

20W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

1453LM

Finishing

DARK BROWN

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.

FLOS

TRACKLIGHT

INDOOR LIGHTING

My Circuit Disc is a a suspended lamp with diffused light composed of a slender horizontal disc crossed by a vertical stem with a refined balance of geometries. Usable power cable length 300 cm attached to a spherical adapter with matte white finish compatible with My Circuit track system. Matte white painted aluminum body with polycarbonate stem. Silk screened PMMA diffuser. Edge Lighting technology light source (CRI 90) and adjustable brightness 10–100%.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m lenght. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard) with an outer casing, code 99848 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

ELR

SPIKE LIGHT

OUTDOOR LIGHTING

Landscape luminaires for illuminating trees and plants that operate on constant voltage platform, allowing multiple luminaires to be powered by a single LED driver remotely. Incorporating ELR’s signature modular concept design, LED engines are fully interchangeable with various choices for optimal illumination and ease of maintenance.
