LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

PERISKOP NARROW_81167M08

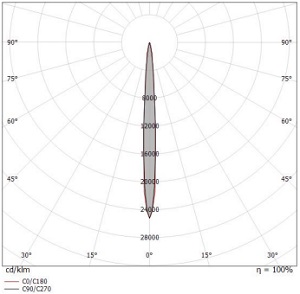

Single emission projectors for outdoor application. The super warm white LED light source with a narrow spot light distribution is composed of 3 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK10.

Specification

Power

20W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

1453LM

Finishing

DARK BROWN

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

LED luminaire for recessed mounting into plasterboard ceilings. Once installed, the luminaire edge projects from of the ceiling 0.39’’ creating a unique and very refined aesthetic effect. The luminaire’s body is injection molded aluminium.

XAL

SURFACE LINEAR LIGHT

INDOOR LIGHTING

Surface luminaire housing from extruded aluminium profile, angular design, no visible screws, surface powder coated in white, grey or black. Luminaire profile with pre-assembled converter unit can be pre-mounted. light inset can be installed without tools. light inset made from extruded profile for improved thermal management. (reflector version). HPO (High Performance Opal) cover uniform illumination. or micro prismatic DALI-2 converter.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98672 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
