TRAXON

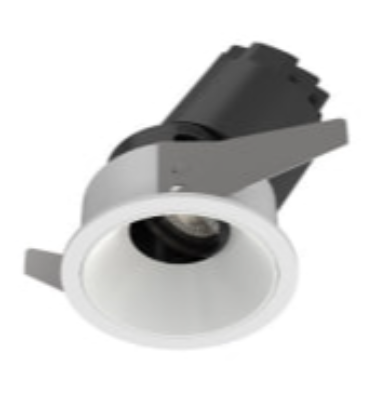

Minimal round recessed luminaire (frameless). Adjustable version that rotates internally by 355° and tilts by a maximum of 30°. The swivel unit rotates in a set back position in relation to the surface of the ceiling in order to guarantee precise, comfortable light diffusion and reduce direct glare significantly. The swivel unit body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation

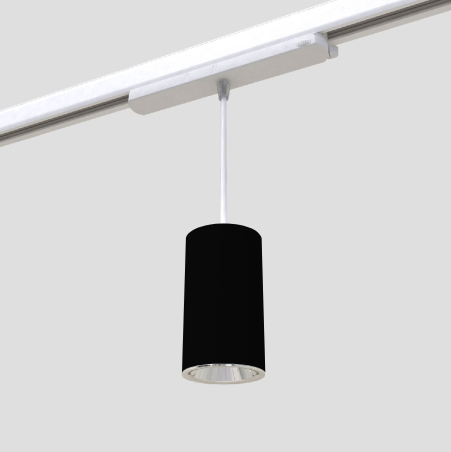

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

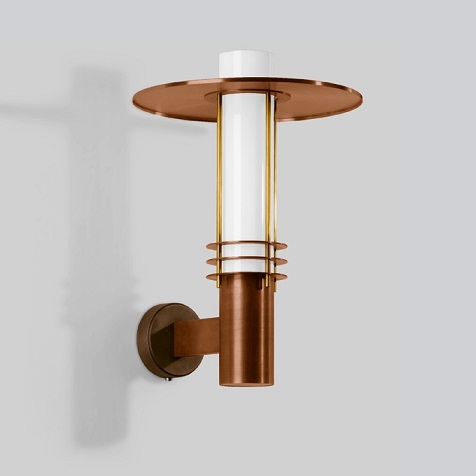

Luminaire made of copper, brass and stainless steel, Opal glass with screw neck. Silicone gasket. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz DC 198-280 V. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK06 Protection against mechanical impacts < 1 joule, r – Safety mark, c – Conformity mark.

Round recessed downlight made of die-cast aluminium with white powder-coating finish

(RAL 9016) and white reflector; ON-OFF Driver; System Power 13W; measurements Ø78mm x

97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm;

luminaire's weight is approximately 210g; rotation 350° and pivot max. 30°; CCT 3000K with

a System luminous flux of 800lm; high color rendering at an index of CRI90; after a lifetime of

50000h L80B10 min. 80% of the luminous flux with energy e
