SPARK

DISPLAY LIGHT

INDOOR LIGHTING

SPK_7123-T3-24°

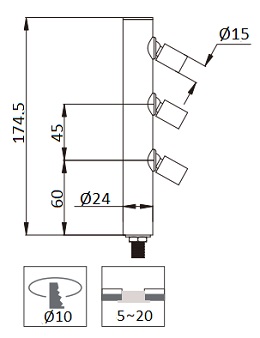

Surface mount aluminium housing display light in anodized black finish. Cut-out 10mm dia. Avilable in single, double and triple lamps stand. Suitable for retail application on all the display shelf, showcases etc. Available Black, White and Silver finishing.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

298LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

BEGA

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Surface mounted downlight with symmetrical light distribution. The partially frosted crystal glass produces an additional vertical light and supplements the light directed downwards by multi-facetted light graphics. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK06.

FORMALIGHTING

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Round recessed uplight with trim in stainless steel (AISI 316) and light body in cast aluminium. Light trim inclusive of toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Thermoplastic recessed box included additional recessed box for concrete installation available upon request. Weight resistance 1300/3000 kg. Adjustable version tiltable vertically 0-15° in two directions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 56 mm diameter hole (in plasterboard) with an outer casing, code 83063 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

POLE LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
