SPARK

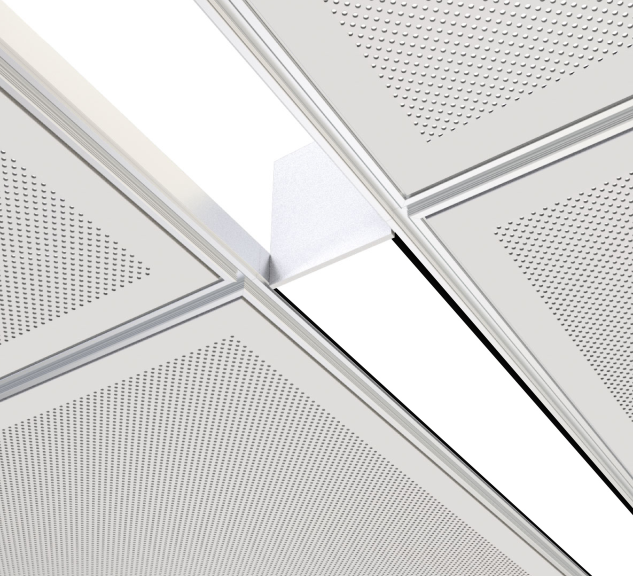

A continuous-row LED lighting system created by trunking unit and LED luminaire. It appears a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking rail are perfectly matched to each other. Optics available 30°, 60°, 90°, 120°, Asymmetrical, Double asymmetrical and Diffuser.

Stainless steel body in grade 316. Single cable entry. One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 316. Durable silicone rubber gasket. Clear toughened glass. Remote driver is included for constant current (CC) products and is not IP-rated. Remote driver is not included for constant voltage (CV) products. Remote box IP-rated is not included and is to be ordered separately for constant current (CC) products. Recessing box in PVC is included. Luminaire must be submerged when operational. Maximum depth 2 m

Luminaire made of die-cast aluminium end-caps and extruded aluminium profile with powder coating. Single cable entry, stainless steel fasteners in grade 316. PMMA diffuser with Opal (UGR <19) and micro prismatic (UGR <13) options for better glare control. Up and down light distribution options. Passive thermal management, integral control gear. Wireless control available through Bluetooth connection. Daylight and occupancy sensor options. Emergency module (1 or 3 hours) is available upon request with 3 options (BASIC, SELF-TEST, PRODALI). IP20.

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.09 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
