Product Detail | Bloxlimited

COLORS

LED STRIP

INDOOR LIGHTING

D6240SWW-24V-8mm

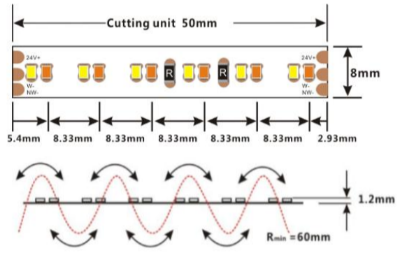

Three-wire adjustable toning and high-dense strip makes it widely match all kinds of controllers. Ultra-slim thickness of 1.2mm, matching profiles better. ●Self-encapsulated design offers five optional 2700- 6000K white lights, CRI 90，With life span over 36000H.

Specification

Power

16.3W/M

Color Temperature

2700K-6000K

Light Source Type

LED

Lumen Output

1300LM/M

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

DIMMABLE DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The super warm LED light source with a asymmetric wallwasher light distribution is composed of 240 topled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 3820 lm, with a 117.5 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

PROLICHT

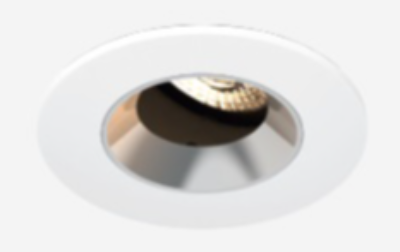

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Rotatability 350°, pivotability 30° · Series compatible with each other, uniform cutout diameter · Weight: 0.30 grams · 2 powder-coated color options · RAL colors on request· Dimmability depends on the ballast· CRI > 90 · MacAdam: 3 · Beam widths: "Flood", "Medium", "Spot/Superspot" · IP protection type IP65 · Height: 95 mm · Diameter: 82 mm
