XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L651A0021 090-7L60100

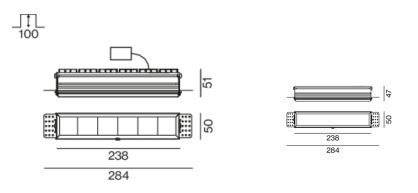

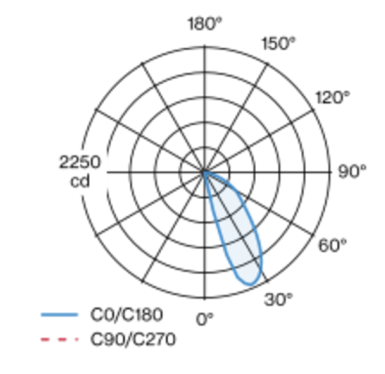

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six wallwasher light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminumvaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

19.8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1750LM

Finishing

CHROME

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control.

LUMASCAPE

SPIKE LIGHT

OUTDOOR LIGHTING

The LS9402LED is a brilliant LED stake mounted accent, featuring dimming control options: When high output is required, it can be deployed in its full output, 2W configuration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. This luminaire also comes with a stake that can be set at 0oor 30o to suit any landscape or planter application. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard.

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

LED Built-in with body - High Power LED - Power LED. 3-step MacAdam

IGUZZINI

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed luminaire with adjustable optic for warm white LED 2700K with high colour rendering index. Passive cooling system. Adjustable body can be rotated within the recess to ensure precise but comfortable lighting and considerably reduced direct glare. 355° internal rotation and max 30° oscillation with continuous friction. Fixed recess structure in die-cast aluminium with perimeter stop frame. The recessed luminaire includes a radiant aluminium element.
