XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L451F0021 090-7L4020W

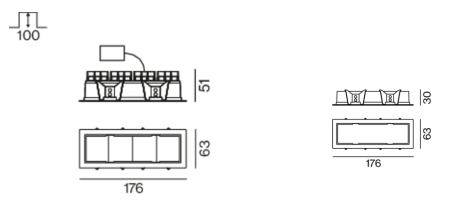

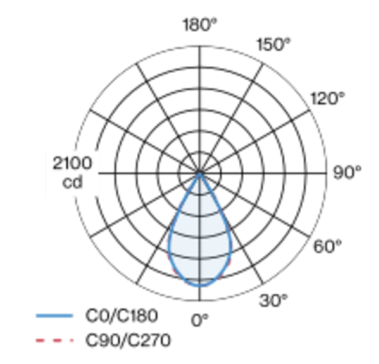

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Specification

Power

13.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1410LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

SPARK

SURFACE MAGNETIC TRACK SPOT

INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

ACCLAIM

LED STRIP

OUTDOOR LIGHTING

Flex One HO Exterior provides the best in class color rendering, fidelity, and gamut of any LED strip product with wired digital communication network. It can be cut in one inch increments to create the exact length needed for your specific application. It is available in 2700K, 3000K, & 4000K, and features a lumen output of up to 411 per foot, with a minimum CRI of 95. The combination of it’s high output, low profile, and IP68* rating allows for a wide variety of cove, millwork, signage, and many other exterior applications.

LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Luminaire with 45° adjustable head with a clear encapsulation and reflectors for general lighting applications. Polyurethane is utilized in XOOLUM to make it more resistant to impact from salt water UV-light and solvents. Modular mounting and lighting scenery thanks to its LEDs-Click technology enabling a 45° tilt of the luminaire head. Appealing form factor of 25.4mm*31mm which blends easily in any architectural concepts.

LUMASCAPE

SPIKE LIGHT

OUTDOOR LIGHTING

The Grevillea is an excellent option for delivering light on the ground plane, or for feature accent lighting without obstruction from low level plantings. Aim and tilt adjustability, a choice of finishes and long service life are all part of the package. The Grevillea also features d5 driver technology as a standard inclusion, providing a high level of control: When high output is required, it can be deployed in its full output, 6 W configuration; If a lower level of light is required, it can be set as low as 0.6 W, (either by the factory or in the field).
