XAL

RECESSED DOWNLIGHT
INDOOR LIGHTING
090-7L251B0B21 090-7L20100

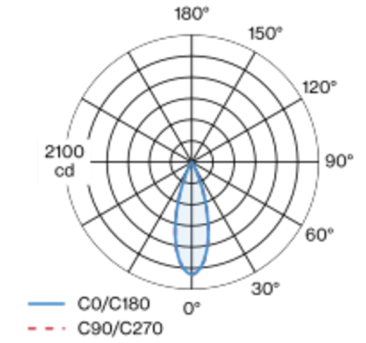

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
7.9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
602LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING

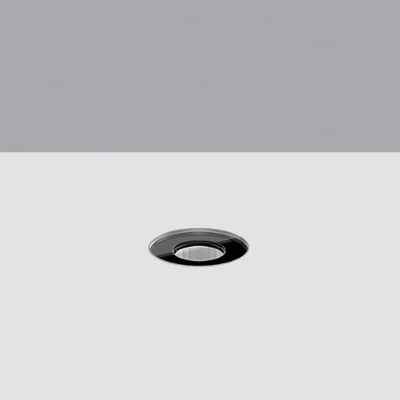

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


LINEALIGHT
LED NEON TUBE
OUTDOOR LIGHTING

Single emission submerged or led strip for outdoor application. The super warm white LED light source with a diffused light distribution is composed of 112 topled LEDs with CCT of 2700 K and a CRI >90; the source luminous flux is 998 lm, with a 99.8 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68; the total weight is of 0.103 kg. The power supply driver is not provided and is

LUCI
LINEAR LIGHT
INDOOR LIGHTING
RIMiT mr. round and compact design with only 8.8mm in diameter, supports a wide range of designs making your design ideas come to life.The light fixture can be customized into 60 different lengths from 33mm to 1508mm.Round dotless lines with 8.8mm diameter.
