XAL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

SASSO 60 _048-2622514M 048-2698318 002-90762

Round recessed spotlight luminaire is made of die-cast aluminium. 2 lamps; surface matt silver. 360° rotatable and 30° tiltable. Installation without tools in mounting set due to patented ball catch system; oval installation housing. Suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.

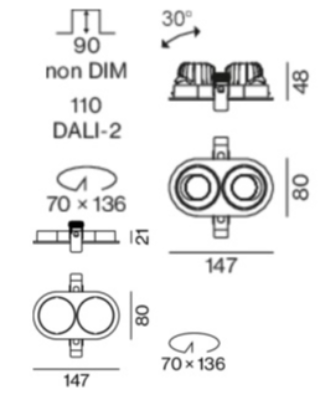

DIMENSION: (L)147x(W)80x(H)48mm.

Specification

Power

25.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1980LM

Finishing

MATT SILVER & BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

PROLICHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

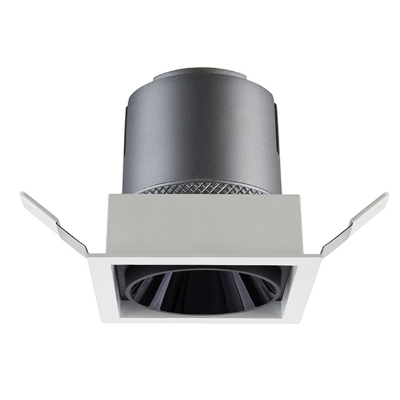

Perfect integration in the room · square design · Precision reflector for accentuation · Reflector with spherical facet optics · Rotatability 355°, pivotability 30° · Ceiling thicknesses of 10-15 mm · Adjustment with ULS ("UNIQUE LOCKING System") · 50,000 hours lifespan · High luminaire luminous flux for applications with high ceilings. IP protection type IP44: Height: 127 mm · Length: 253 mm · Width: 136 mm

LINEALIGHT

WALL LIGHT

INDOOR LIGHTING

Single emission wall lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 1.2 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

SPOTLIGHT

OUTDOOR LIGHTING

IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.
